2020 Hindsight

With the end of 2020 in sight the O9 Keef has had a few jobs completed on it and to all intents and purposes is considered "complete" enough to be sat in the display case. Since the last set of photographs I have added (and weathered) glazing, lightly weathered the loco and fitted MicroTrains couplers. These were the first set of couplers I had assembled for some time, I had forgotten what I was missing out on...!

One thing I haven't made any attempt to do is secure the body to the modified Bachmann chassis, it will likely be a blu-tac job. A reminder that the basic 3D print for this loco it available from A1 Models on eBay - and that I have made several changes to model, especially around the underframe.

There is an air of indecisiveness about the future of the model, it almost, but doesn't quite fit with my plans. A bit like 2020 really... I'm really happy that I have been able to continue modelling throughout the year but with hindsight, what has emerged is something of a mixed bag, a collection of individual models that actually achieve no real collective "whole". I started in this vein with MG Models 'Classic' loco, two paint jobs later and whilst it looks OK it might not be what I really want it to be.

Of course 'Beck Bridge' had a makeover to include a backscene, as seen above, which whilst successful it has still not found a real home for display!

At Easter, with time on my hands I started a micro layout based on Julian Andrews brickworks plan, this has never got beyond the initial phase other than a few tweaks as I searched for a suitable aesthetic for the rolling stock, and failed to get the result I wanted using KB Scale kits (nothing against the kits - just how I wanted to use them), and then some doubts over alternative scratchbuilds.

Not everything has been inconclusive, a Meridian Models Ashover coach kit received as a gift actually led to the one completed project of the year, the 009 diorama 'Humberston'. What started as a plain Manilla build of the coach in original condition turned into a customised rebuild of the coach to represent the LCLR modifications and a Simplex scratchbuilt to match, along with a suitable display base with platform and signal.

I hate to admit it but the other real success story was also 009, although the door is open for an O9 reworking for next Christmas!

Don't worry, I'm not about to rename the blog, plans are slowly coming together to revive the O9 micro layout and the locomotive and rolling stock aesthetic might also be resolved. Watch this space in 2021!

Happy New Year to our reader(s)

Colin


Alan Keef K12 in O9 - Everythings Gone Green...

With a dry spell of weather over the weekend I managed to get a coat of varnish over the ever-so-slowly painted Alan Keef K12.

The green is Halfords 'Meadow Green', but you might have guessed that! Black and red areas were brush painted, red first over red oxide primer and then the green and red were masked off for the black to be painted.

Grilles are some old etched fencing panels cut to shape, blackened, painted and added in between painting and varnishing. The cab side panel has not come out too badly in the end, although this is somewhat helped by the very flat finish the Humbrol varnish creates.

There are a few jobs to complete such as glazing and I think it will definitely need some weathering to hide the ropier parts of the paintwork. It might have to wait though...

Colin

Christmas Tree Halt

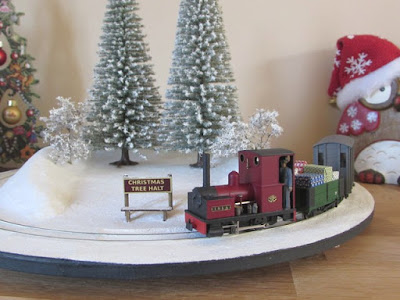

I think most micro layout builders have thought at some point about building a seasonal scene, myself included. I thought about it again in November this year in light of having acquired what I thought was a thick cardboard 30cm cake board earlier in the year. However I reckoned that I might have left it a bit late at my rate of progress so decided not to. Roll on a week or so and challenged to create a Christmas decoration for a virtual Christmas meeting I simplified the plan down, and this is the result...

More of a decoration than a serious layout, on starting construction I discovered the board was more likely MDF than card when stripped of the foil covering. I added some strips of recycled 8mm ply underneath to strengthen it. The track is some (very) secondhand N gauge flex track with the rails curved using an improvised rail bender. This was surrounded by mount card, and covered with wood filler. The rest of the scenery is polystyrene and card covered with wood filler, then a layer of white paint/filler/PVA mix and the snow itself is largely paint. Two Noch fir trees form the centrepiece and are accompanied by some smaller, bare sea moss trees, recycled from my daughter' s winter diorama.

The sign and bench are scratchbuilt from timber scraps, treated with button polish (shellac) and lightly painted. The sign was printed on photo paper and fixed in place.

The loco is my modified Minitrains Bagnall 'Isla' and the brake van modified from a Dundas WHR kit. The wagonload of presents was constructed especially for the project and started life as a scratchbuilt O9 body that was surplus to requirements, it was narrowed down, extra floor plank ends marked on and placed on a Colin Ashby 009 chassis. It contains miniature presents made from balsa blocks wrapped in miniature wrapping paper downloaded online and printed!



Although 009 at the moment, in theory an O9 version is possible if the right stock was available...

Colin
